Great service. [I replaced/upgraded] unit in aircraft.
- Customer
Adam M. from NSW, Australia
- Aircraft
Piper PA-28-181 Cherokee
- EI Instrument

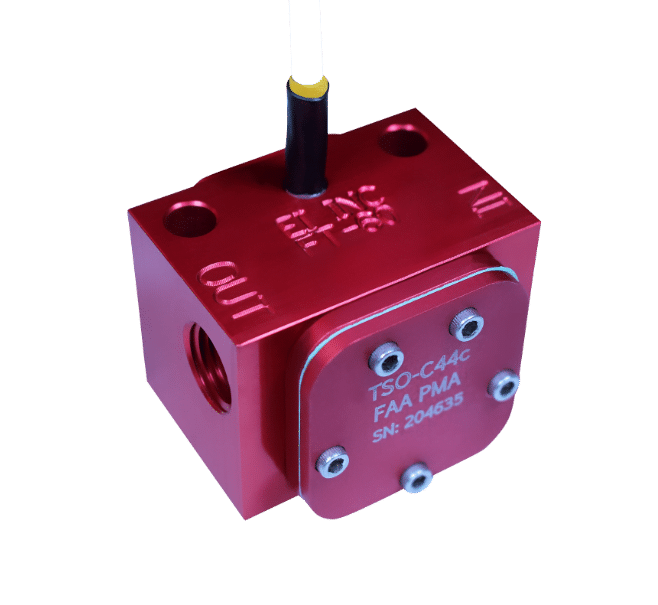

FT-60 Fuel Flow Transducer
FAA Approved Instrument
- FAA TSO’d and STC’d with EI Instruments
- Up to 350 HP engines, engine-driven fuel pumps only.
- Red anodized aluminum body, 5.3 ounces.
- 1/4″ female NPT, 1.375 in. (height) x 1.620 in. (width) x 1.90 in. (length)
- .6 to 70+ GPH, .6 PSI drop at 30 GPH, 2.3 PSI drop at 60 GPH
Have a gravity fed engine?
Look at our FT-90, engineered for gravity fed engines, see below for more details.
Questions?
8am–4:30pm PST M–F
Sorry, We’re Closed
Product Overview
Model Comparison
 |
 |
 |
|
| Model | FT-60 | FT-90 | FT-180 |
| Engine Type | Up to 350 HP engines, engine driven fuel pumps only. | 350-550 HP engines, gravity fed engines. | 550 HP+ engines, engine driven fuel pumps only. |
| Fuel Flow | .6 to 70+ GPH | 2 to 125+ GPH | 2 to 250+ GPH |
| Connection | 1/4″ female NPT | 1/4″ female NPT | 1/4″ female NPT with #8 male flare adapters |
| Typical Use | Piston with Fuel Pump | Piston Gravity Fed | TurboProp |
| Specifications | Download Info Sheet | Download Info Sheet | Download Info Sheet |
Prices
Retail Prices
Packages include:
- FT-60 Transducer
- OLC-1 Connectors (3)
- Installation Instructions
Description
Package
Retail Price
FT-60 Fuel Flow Transducer
FT-60
$296
Specifications
Videos
Documents
Documents & Manuals
Testimonials
Customer Testimonials
A clear capable replacement for a cluster gauge. Vivid colors used which make it easy to see engine status at a glance.
- Customer
Adam S. from New Zealand
- Aircraft
Cessna 172N Skyhawk
- EI Instrument
The installation was straightforward and quite easy. Reliability and accuracy far exceed the original [aircraft’s] oil pressure/temperature systems. Also, the price was about a third of the cost to replace the gauge cluster.
- Customer
Casey R. from Oklahoma
- Aircraft
Cessna 172M
- EI Instrument
Outstanding Customer Service!!
Great customer service!
Installed digital volt/amp gauge in PA 28-181. Great unit easy to install. Much better than original.
This is the third EI instrument I am having installed in “Lillybelle .” I am impressed with the ease of operation, the affordability and the accuracy of each of these instruments. For years I trusted my life to 50+ year old gauges. Now I don’t have to. What a relief!
- Customer
Charles M. from South Dakota
- Aircraft
Cessna 150F
- EI Instrument
EI representatives… have been very helpful, truthful, and knowledgeable… We had no idea, that a few weeks later [after our purchase], we would need to have a Top Overhaul. What great timing! Having your engine monitor installed in our plane will hopefully help us keep it out of the shop for further engine repairs.
- Customer
Phillip B. From Oklahoma
- Aircraft
Cessna 210N Centurion / Turbo Centurion
- EI Instrument
I won a FP-[5]L and had it installed in my c150. I was/am impressed with the accuracy and ease of operation of the FP. I wanted a new tach and I trust (and verified) that the EI R-1… would be my best choice. I am not a rich man. These instruments are affordable and incredibly accurate. Already planning my next buy from EI.
- Customer
Charles M. from South Dakota
- Aircraft
Cessna 150F
- EI Instrument
Good support when we called with particular questions with the initial setup. We liked the functions and the price.
After a full IFR install on my Cessna 175, my two favorite instruments without question is the CGR-30 Combo set. Simple and customizable, the data is invaluable!
I like being able to get a hold of a technical expert immediately when calling into the main EI phone number… The build quality of the sensors, display unit and EDC seem very good… I appreciate the business practices of EI and have had an EI R-1 Tachometer which has worked flawlessly for the past 20 years.
- Customer
Eric B. From Texas
- Aircraft
Grumman American AA-5B Tiger
- EI Instrument
