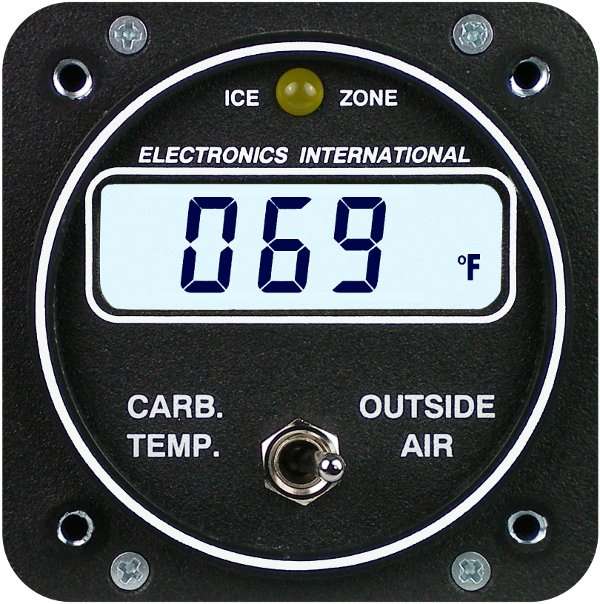

CA-1 Carb and OAT Instrument

CA-1 Carb and OAT Instrument

$488.00

  • Primary Replacement
  • 2 1/4″ Flush Mount
  • Displays Carb and Outside Temperature Readings

SKU: CA-1 Carb Category:

Don’t Need Your Glasses To Read

  • Large digital backlit display.

Interpret Your Readings Faster

  • The digital display allows for quick trend analysis.

Budget Friendly

  • Same precision found in the most advanced analyzers on the market, but won’t break the bank.

Accurate, Dependable & Easy To Use

  • LCD sunlight viewable and backlit for night operation.
  • Electronics International consistently has been a leader in digital engine instrumentation since 1979.

CA-1 Carb Overview

OAT and Carb Temp

Electronics International provides the budget-conscious pilot the option to monitor their Carburetor Temperature and Outside Air Temperature with the same precision found in the most advanced analyzers on the market, while not breaking the bank.

Ice Zone Warning

The CA-1 provides pilots with one channel of Carb Temp and one channel of OAT readings in a stable, one-degree digital format. An “Ice Zone” Warning Light alerts the pilot when either temperature is between 10 Degrees to 39 Degrees (Fahrenheit).

Retail Prices

Package includes:

  • A-1 Carb Instrument
  • 2 ea. P-128 Precision Probe
  • 2 ea. XP-6′ Precision Thermocouple Cable
  • Wire Harness
  • Operating & Installation Instructions
Description Retail Price
CA-1 CARB TEMP & OAT $399

Specifications

Dimensions
2.5″ x 2.5 ” x 2.65” Deep, 2 1/4” Flush Mount

Weight
7 oz. (Unit), 1.6 oz for a Temperature Probe & 2 oz for a 6′ Cable

Power Requirements
7.5 to 30 Volts, 1/10 Amp

Ice Zone Warning
Light is lit when displayed temperature is between 10’F and 39’F.

Display
Viewable in direct sunlight, with dimmable 12 and 24 volt backlight control lines.

Intensity Control
Separate intensity control lines allow you to independently control Ice Warning Zone and Backlight intensity.

Probes
Type K Thermocouple, Ungrounded
