The TR-1 provides a color backlit display panel in a 2″ round standard aircraft mount. It incorporates a needle and a digital display. Display panels can be configured for any function, range and markings.

TR-1 Screen

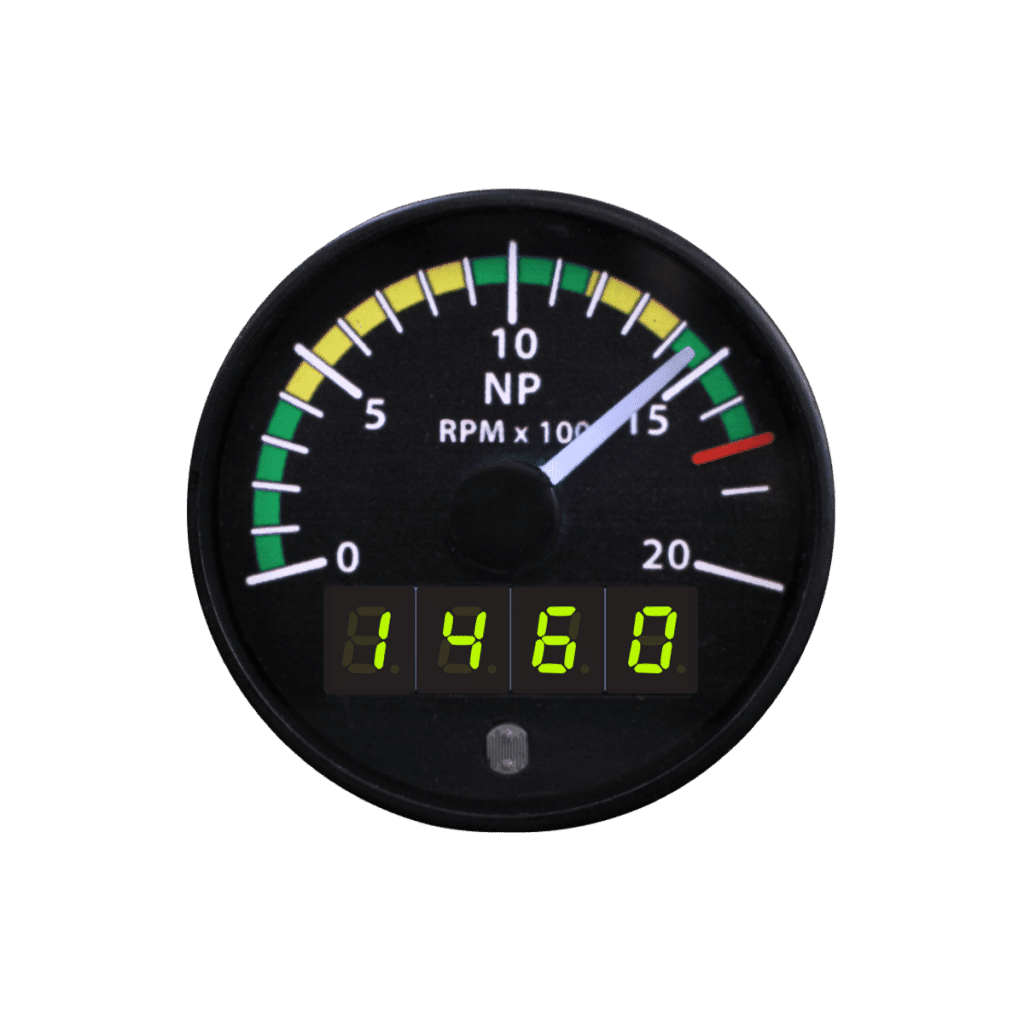

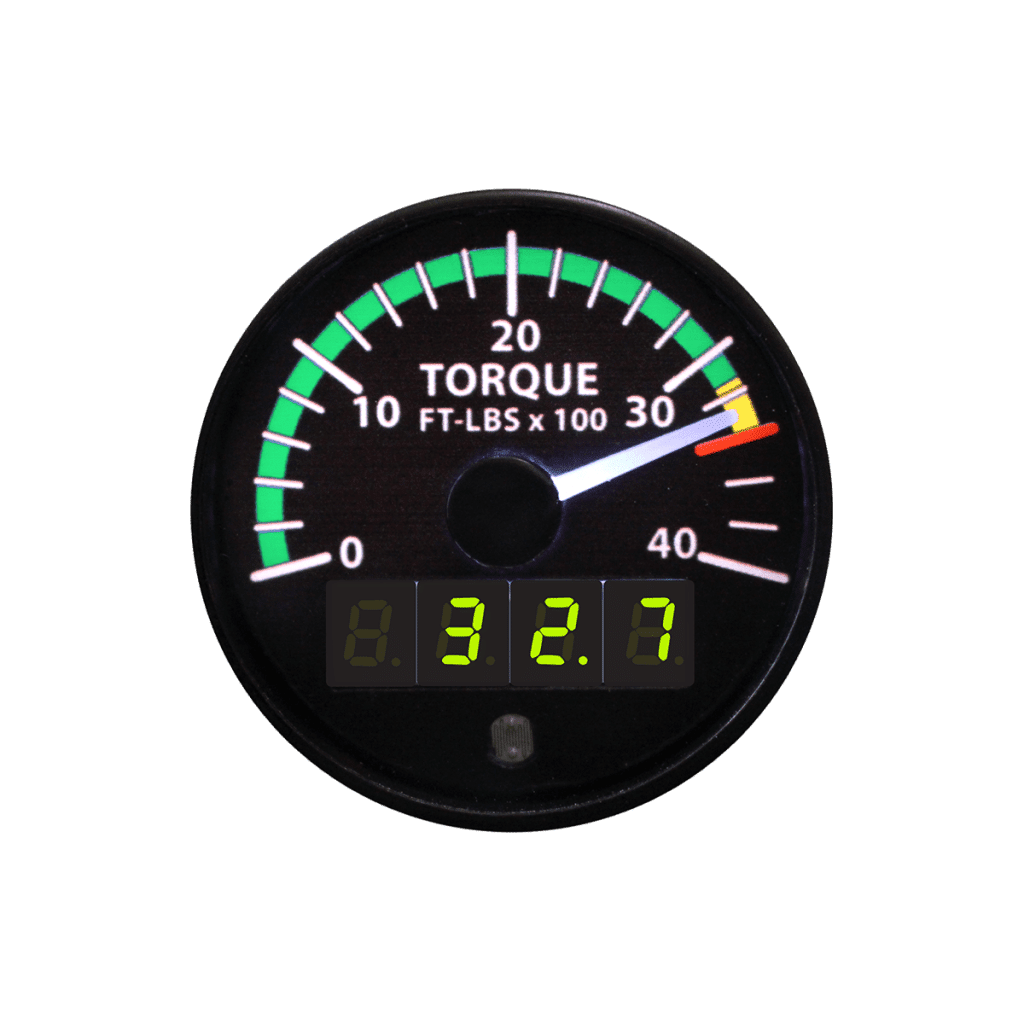

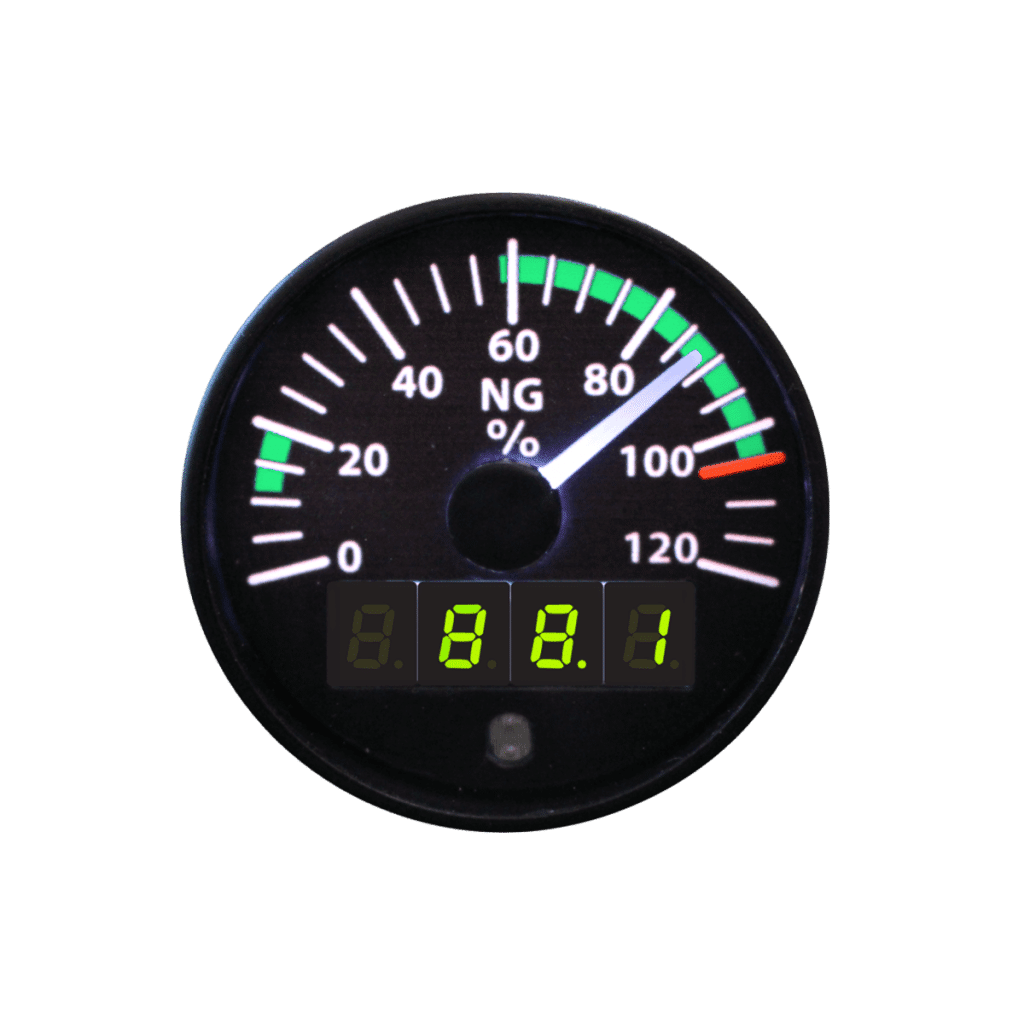

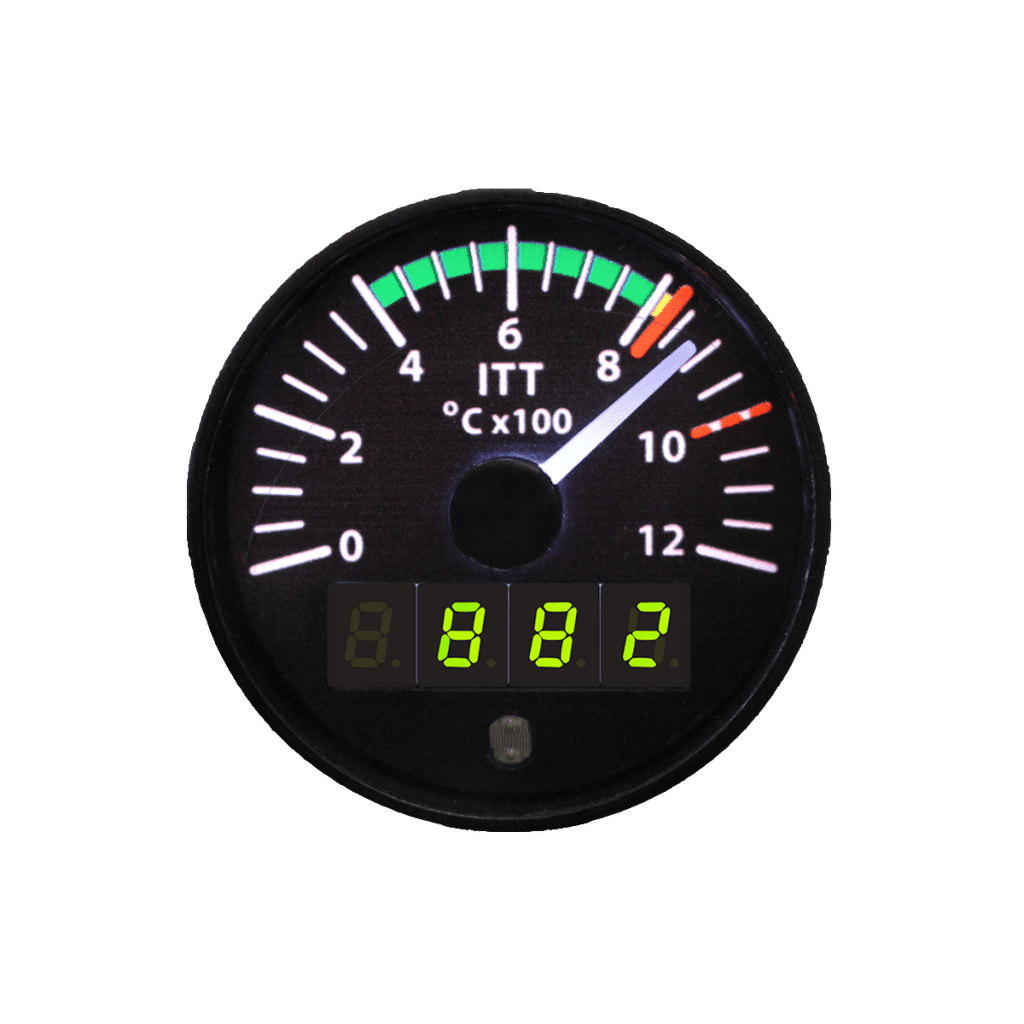

Configuration Examples:

Features:

  • Any one Function can be displayed.
  • Needle and Digital Displays.
  • Auto and External Back Light Control.
  • Data Recording.
  • When interfaced with the BC-5 the TR-1 can display data on almost any digital bus.
  • The TR-1 can be configured to process a signal from almost any transducer, probe or sensor.
  • Scaling and Color Ranges can be configured for any function.
  • FAA TSO’d
  • Contact Electronics International inc. and let us help you with a configuration that meets your requirements.

Specifications

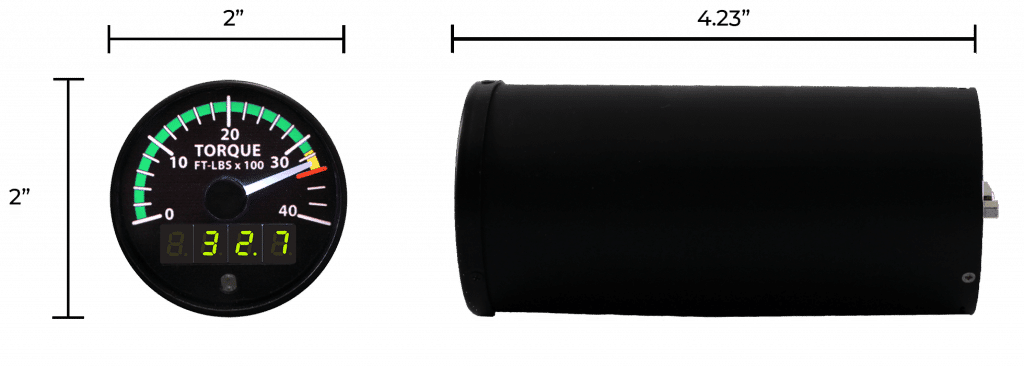

Dimensions
2” standard round, 4.23″ long

Weight
0.3 Pounds (Instrument Only)

Power Requirements
6 to 55 Volts
Typical: 0.075 amps @ 28 Volts

Dimming
Auto (electric eye) and Manual

Environmental
DO-160G

Internal Storage
1,000 hours, RS232 port (premium only)

Certifications
FAA TSO’d -C43c, -C44c, -C45b, -C47a, -49b, -C55a
