The MVP-50 incorporates our largest display and packs a lot of functionality into a number of easy-to-read screen configurations. A few of the configurations are displayed below.

At the top of the MVP-50T display is a Crew Alert System (CAS) incorporating up to 21 annunciators. At the bottom, you can display 6 to 8 functions in a digital-only format. In the center of the display, arc and strip gauges are provided in a number of formats.

The MVP-50 incorporates a 5.7”, high resolution, color, glass panel display in a compact bezel. The displays are night-vision compatible.

MVP-50x Main Screen

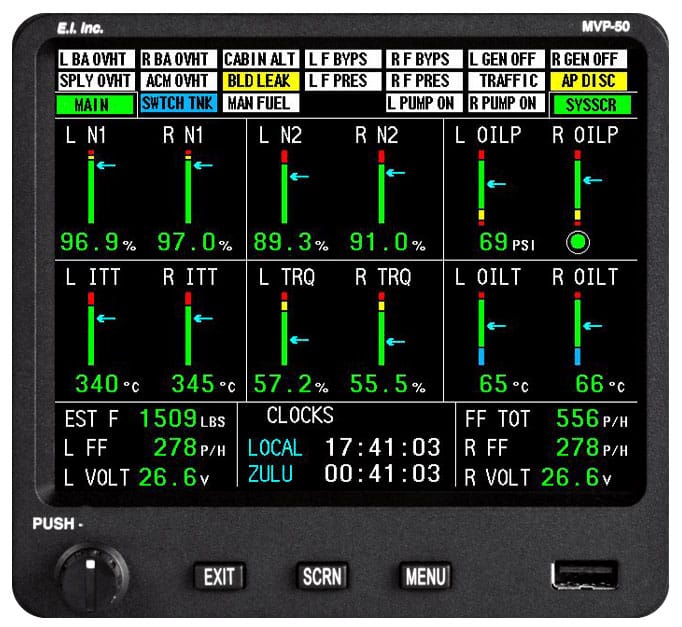

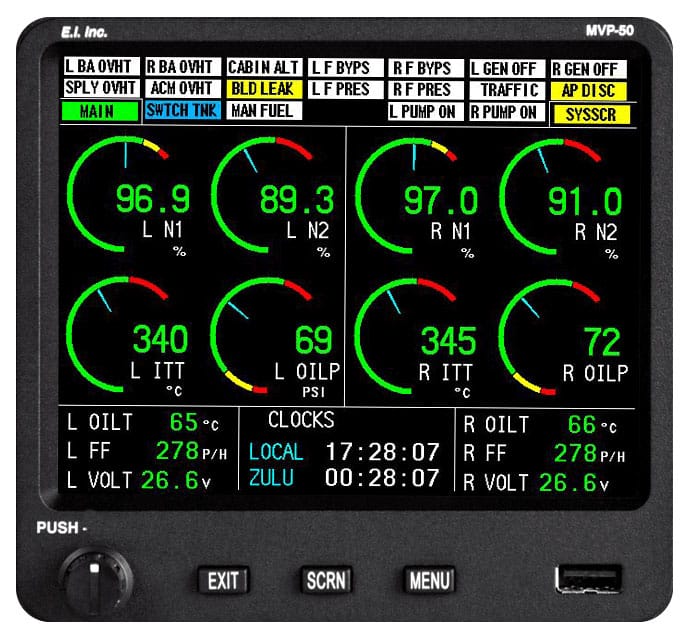

Configuration Examples:

Available Customization:

  • Functions can be displayed in Arcs, Strips, Digital Only, or as an Annunciator.
  • Any Function can be displayed in any location.
  • Crew Alert System (CAS) – 21 Annunciators can be used to display Cautions, Warnings, and/or Status Indications.
  • Multiple Secondary Screens are available. Additional functions can be displayed on the Secondary Screen.
  • Data Recording.
  • Voice Warnings.
  • Real-Time-Data-Out (RTDO) Port.
  • Upload Configuration Files and download Flight Data via the USB Port on the front panel.
  • When interfaced with the BC-5 the MVP-50 can display data on almost any digital bus.
  • When interfaced with the EDC-33 the MVP-50 can display signals from almost any transducer, probe, or sensor.
  • Scaling, Color Ranges, and Voice Files can be configured for every function.
  • FAA TSO’d.
  • Contact Electronics International inc. and let us help you with a configuration that meets your
    requirements.

Specifications

Dimensions
5.55″ W x 5.15″ H x 2.4″ D, Flush Mount

Weight
1.9 Pounds (Instrument Only)

Power Requirements
7.5 to 30 Volts
Typical: 0.2 amps @ 12 Volts, 0.1 amps @ 24 Volts

Display
Active Matrix, Sunlight Readable

Backlight
Fully Dimmable for Night Flights

USB Port
Data Download and Software Updates

Internal Storage
Up to 1,500 most recent flights stored. All monitored functions are stored up to three times per second. Recorded flight data can be easily downloaded via USB port.

Certifications

  • FAA TSO’d to DO-160G
  • FAA DO-178 Level C
